Steady reinvention: A short historical past of block storage at AWS
I’ve constructed system software program for many of my profession, and earlier than becoming a member of AWS it was largely within the networking and safety areas. Once I joined AWS almost 13 years in the past, I entered a brand new area—storage—and stepped into a brand new problem. Even again then the size of AWS dwarfed something I had labored on, however lots of the similar methods I had picked up till that time remained relevant—distilling issues all the way down to first ideas, and utilizing successive iteration to incrementally clear up issues and enhance efficiency.
If you happen to go searching at AWS providers immediately, you’ll discover a mature set of core constructing blocks, but it surely wasn’t at all times this manner. EBS launched on August 20, 2008, almost two years after EC2 turned out there in beta, with a easy thought to offer community connected block storage for EC2 cases. We had one or two storage consultants, and some distributed methods of us, and a strong data of laptop methods and networks. How exhausting may or not it’s? On reflection, if we knew on the time how a lot we didn’t know, we might not have even began the undertaking!
Since I’ve been at EBS, I’ve had the chance to be a part of the workforce that’s developed EBS from a product constructed utilizing shared exhausting disk drives (HDDs), to at least one that’s able to delivering lots of of hundreds of IOPS (IO operations per second) to a single EC2 occasion. It’s outstanding to mirror on this as a result of EBS is able to delivering extra IOPS to a single occasion immediately than it may ship to a complete Availability Zone (AZ) within the early years on high of HDDs. Much more amazingly, immediately EBS in mixture delivers over 140 trillion operations each day throughout a distributed SSD fleet. However we positively didn’t do it in a single day, or in a single massive bang, and even completely. Once I began on the EBS workforce, I initially labored on the EBS shopper, which is the piece of software program answerable for changing occasion IO requests into EBS storage operations. Since then I’ve labored on virtually each part of EBS and have been delighted to have had the chance to take part so immediately within the evolution and development of EBS.
As a storage system, EBS is a bit distinctive. It’s distinctive as a result of our major workload is system disks for EC2 cases, motivated by the exhausting disks that used to take a seat inside bodily datacenter servers. Lots of storage providers place sturdiness as their major design purpose, and are keen to degrade efficiency or availability with the intention to shield bytes. EBS prospects care about sturdiness, and we offer the primitives to assist them obtain excessive sturdiness with io2 Block Specific volumes and quantity snapshots, however in addition they care loads concerning the efficiency and availability of EBS volumes. EBS is so carefully tied as a storage primitive for EC2, that the efficiency and availability of EBS volumes tends to translate virtually on to the efficiency and availability of the EC2 expertise, and by extension the expertise of working purposes and providers which might be constructed utilizing EC2. The story of EBS is the story of understanding and evolving efficiency in a really large-scale distributed system that spans layers from visitor working methods on the high, all the best way all the way down to customized SSD designs on the backside. On this put up I’d wish to inform you concerning the journey that we’ve taken, together with some memorable classes which may be relevant to your methods. In any case, methods efficiency is a fancy and actually difficult space, and it’s a fancy language throughout many domains.
Queueing idea, briefly
Earlier than we dive too deep, let’s take a step again and have a look at how laptop methods work together with storage. The high-level fundamentals haven’t modified by the years—a storage gadget is related to a bus which is related to the CPU. The CPU queues requests that journey the bus to the gadget. The storage gadget both retrieves the info from CPU reminiscence and (ultimately) locations it onto a sturdy substrate, or retrieves the info from the sturdy media, after which transfers it to the CPU’s reminiscence.
You may consider this like a financial institution. You stroll into the financial institution with a deposit, however first you must traverse a queue earlier than you may communicate with a financial institution teller who will help you along with your transaction. In an ideal world, the variety of patrons getting into the financial institution arrive on the precise price at which their request may be dealt with, and also you by no means have to face in a queue. However the true world isn’t good. The true world is asynchronous. It’s extra seemingly that just a few folks enter the financial institution on the similar time. Maybe they’ve arrived on the identical streetcar or prepare. When a bunch of individuals all stroll into the financial institution on the similar time, a few of them are going to have to attend for the teller to course of the transactions forward of them.
As we take into consideration the time to finish every transaction, and empty the queue, the common time ready in line (latency) throughout all prospects might look acceptable, however the first individual within the queue had the most effective expertise, whereas the final had a for much longer delay. There are a variety of issues the financial institution can do to enhance the expertise for all prospects. The financial institution may add extra tellers to course of extra requests in parallel, it may rearrange the teller workflows so that every transaction takes much less time, reducing each the whole time and the common time, or it may create completely different queues for both latency insensitive prospects or consolidating transactions which may be sooner to maintain the queue low. However every of those choices comes at a further price—hiring extra tellers for a peak which will by no means happen, or including extra actual property to create separate queues. Whereas imperfect, until you’ve gotten infinite sources, queues are crucial to soak up peak load.

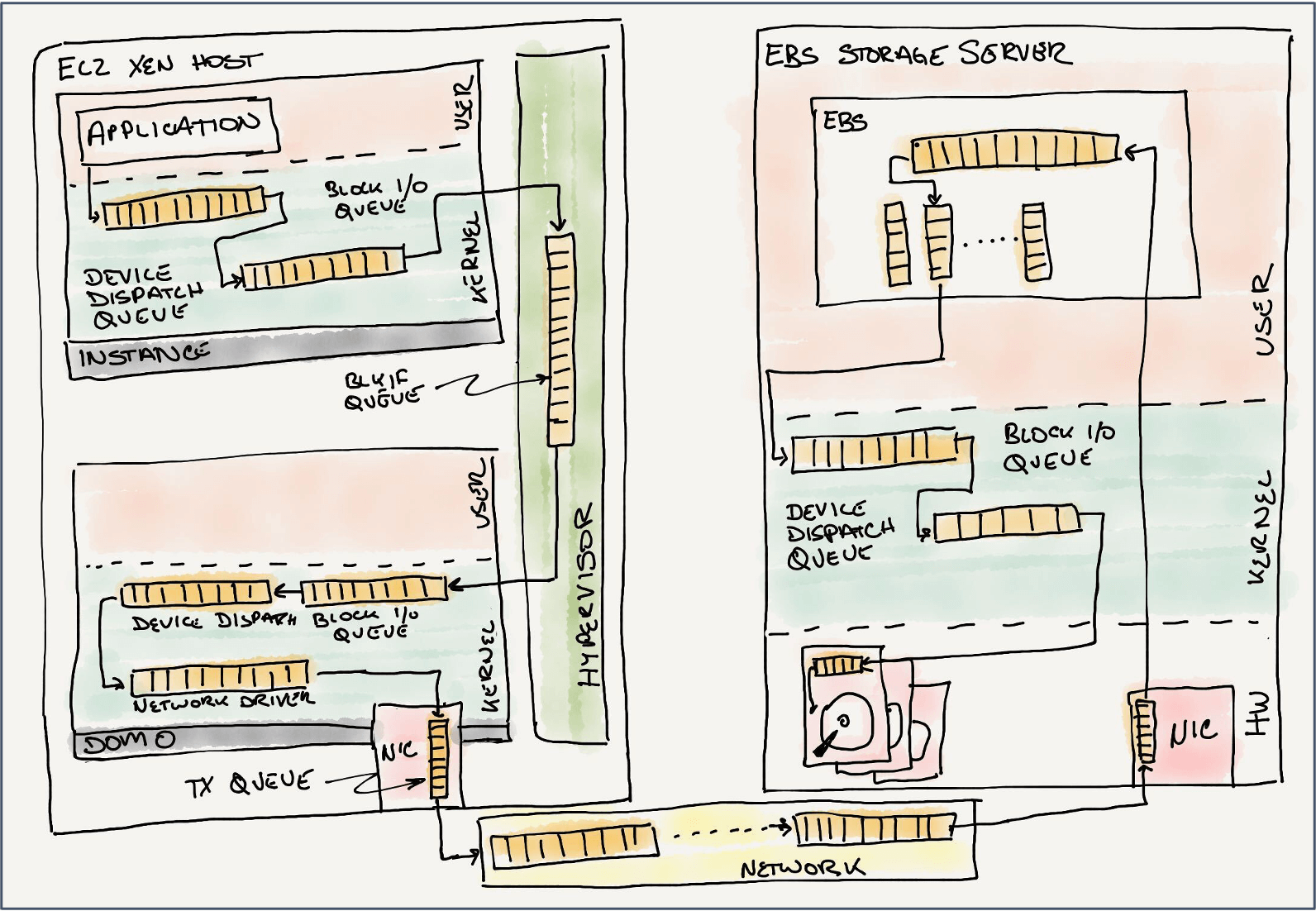

In community storage methods, we have now a number of queues within the stack, together with these between the working system kernel and the storage adapter, the host storage adapter to the storage cloth, the goal storage adapter, and the storage media. In legacy community storage methods, there could also be completely different distributors for every part, and completely different ways in which they give thought to servicing the queue. Chances are you’ll be utilizing a devoted, lossless community cloth like fiber channel, or utilizing iSCSI or NFS over TCP, both with the working system community stack, or a customized driver. In both case, tuning the storage community usually takes specialised data, separate from tuning the applying or the storage media.
Once we first constructed EBS in 2008, the storage market was largely HDDs, and the latency of our service was dominated by the latency of this storage media. Final yr, Andy Warfield went in-depth concerning the fascinating mechanical engineering behind HDDs. As an engineer, I nonetheless marvel at every little thing that goes into a tough drive, however on the finish of the day they’re mechanical units and physics limits their efficiency. There’s a stack of platters which might be spinning at excessive velocity. These platters have tracks that comprise the info. Relative to the dimensions of a observe (<100 nanometers), there’s a big arm that swings backwards and forwards to seek out the precise observe to learn or write your knowledge. Due to the physics concerned, the IOPS efficiency of a tough drive has remained comparatively fixed for the previous few a long time at roughly 120-150 operations per second, or 6-8 ms common IO latency. One of many largest challenges with HDDs is that tail latencies can simply drift into the lots of of milliseconds with the influence of queueing and command reordering within the drive.
We didn’t have to fret a lot concerning the community getting in the best way since end-to-end EBS latency was dominated by HDDs and measured within the 10s of milliseconds. Even our early knowledge middle networks had been beefy sufficient to deal with our consumer’s latency and throughput expectations. The addition of 10s of microseconds on the community was a small fraction of total latency.
Compounding this latency, exhausting drive efficiency can be variable relying on the opposite transactions within the queue. Smaller requests which might be scattered randomly on the media take longer to seek out and entry than a number of massive requests which might be all subsequent to one another. This random efficiency led to wildly inconsistent habits. Early on, we knew that we would have liked to unfold prospects throughout many disks to realize affordable efficiency. This had a profit, it dropped the height outlier latency for the most popular workloads, however sadly it unfold the inconsistent habits out in order that it impacted many shoppers.
When one workload impacts one other, we name this a “noisy neighbor.” Noisy neighbors turned out to be a vital downside for the enterprise. As AWS developed, we realized that we needed to focus ruthlessly on a high-quality buyer expertise, and that inevitably meant that we would have liked to realize robust efficiency isolation to keep away from noisy neighbors inflicting interference with different buyer workloads.
On the scale of AWS, we regularly run into challenges which might be exhausting and complicated because of the scale and breadth of our methods, and our concentrate on sustaining the shopper expertise. Surprisingly, the fixes are sometimes fairly easy when you deeply perceive the system, and have monumental influence because of the scaling elements at play. We had been in a position to make some enhancements by altering scheduling algorithms to the drives and balancing buyer workloads throughout much more spindles. However all of this solely resulted in small incremental beneficial properties. We weren’t actually hitting the breakthrough that really eradicated noisy neighbors. Buyer workloads had been too unpredictable to realize the consistency we knew they wanted. We would have liked to discover one thing utterly completely different.
Set long run targets, however don’t be afraid to enhance incrementally
Across the time I began at AWS in 2011, strong state disks (SSDs) turned extra mainstream, and had been out there in sizes that began to make them enticing to us. In an SSD, there isn’t any bodily arm to maneuver to retrieve knowledge—random requests are almost as quick as sequential requests—and there are a number of channels between the controller and NAND chips to get to the info. If we revisit the financial institution instance from earlier, changing an HDD with an SSD is like constructing a financial institution the dimensions of a soccer stadium and staffing it with superhumans that may full transactions orders of magnitude sooner. A yr later we began utilizing SSDs, and haven’t seemed again.
We began with a small, however significant milestone: we constructed a brand new storage server sort constructed on SSDs, and a brand new EBS quantity sort referred to as Provisioned IOPS. Launching a brand new quantity sort is not any small process, and it additionally limits the workloads that may benefit from it. For EBS, there was an instantaneous enchancment, but it surely wasn’t every little thing we anticipated.
We thought that simply dropping SSDs in to interchange HDDs would clear up virtually all of our issues, and it definitely did deal with the issues that got here from the mechanics of exhausting drives. However what stunned us was that the system didn’t enhance almost as a lot as we had hoped and noisy neighbors weren’t mechanically mounted. We needed to flip our consideration to the remainder of our stack—the community and our software program—that the improved storage media immediately put a highlight on.
Despite the fact that we would have liked to make these adjustments, we went forward and launched in August 2012 with a most of 1,000 IOPS, 10x higher than current EBS normal volumes, and ~2-3 ms common latency, a 5-10x enchancment with considerably improved outlier management. Our prospects had been excited for an EBS quantity that they might start to construct their mission vital purposes on, however we nonetheless weren’t glad and we realized that the efficiency engineering work in our system was actually simply starting. However to do this, we needed to measure our system.
If you happen to can’t measure it, you may’t handle it
At this level in EBS’s historical past (2012), we solely had rudimentary telemetry. To know what to repair, we needed to know what was damaged, after which prioritize these fixes primarily based on effort and rewards. Our first step was to construct a technique to instrument each IO at a number of factors in each subsystem—in our shopper initiator, community stack, storage sturdiness engine, and in our working system. Along with monitoring buyer workloads, we additionally constructed a set of canary checks that run repeatedly and allowed us to observe influence of adjustments—each constructive and unfavorable—underneath well-known workloads.
With our new telemetry we recognized just a few main areas for preliminary funding. We knew we would have liked to cut back the variety of queues in all the system. Moreover, the Xen hypervisor had served us properly in EC2, however as a general-purpose hypervisor, it had completely different design targets and plenty of extra options than we would have liked for EC2. We suspected that with some funding we may cut back complexity of the IO path within the hypervisor, resulting in improved efficiency. Furthermore, we would have liked to optimize the community software program, and in our core sturdiness engine we would have liked to do quite a lot of work organizationally and in code, together with on-disk knowledge format, cache line optimization, and totally embracing an asynchronous programming mannequin.
A extremely constant lesson at AWS is that system efficiency points virtually universally span quite a lot of layers in our {hardware} and software program stack, however even nice engineers are inclined to have jobs that focus their consideration on particular narrower areas. Whereas the a lot celebrated splendid of a “full stack engineer” is efficacious, in deep and complicated methods it’s usually much more priceless to create cohorts of consultants who can collaborate and get actually artistic throughout all the stack and all their particular person areas of depth.
By this level, we already had separate groups for the storage server and for the shopper, so we had been in a position to concentrate on these two areas in parallel. We additionally enlisted the assistance of the EC2 hypervisor engineers and fashioned a cross-AWS community efficiency cohort. We began to construct a blueprint of each short-term, tactical fixes and longer-term architectural adjustments.
Divide and conquer
Once I was an undergraduate pupil, whereas I cherished most of my lessons, there have been a pair that I had a love-hate relationship with. “Algorithms” was taught at a graduate stage at my college for each undergraduates and graduates. I discovered the coursework intense, however I finally fell in love with the subject, and Introduction to Algorithms, generally known as CLR, is among the few textbooks I retained, and nonetheless sometimes reference. What I didn’t notice till I joined Amazon, and appears apparent in hindsight, is that you may design a corporation a lot the identical means you may design a software program system. Completely different algorithms have completely different advantages and tradeoffs in how your group features. The place sensible, Amazon chooses a divide and conquer method, and retains groups small and centered on a self-contained part with well-defined APIs.
This works properly when utilized to parts of a retail web site and management airplane methods, but it surely’s much less intuitive in how you possibly can construct a high-performance knowledge airplane this manner, and on the similar time enhance efficiency. Within the EBS storage server, we reorganized our monolithic growth workforce into small groups centered on particular areas, comparable to knowledge replication, sturdiness, and snapshot hydration. Every workforce centered on their distinctive challenges, dividing the efficiency optimization into smaller sized bites. These groups are in a position to iterate and commit their adjustments independently—made attainable by rigorous testing that we’ve constructed up over time. It was necessary for us to make continuous progress for our prospects, so we began with a blueprint for the place we wished to go, after which started the work of separating out parts whereas deploying incremental adjustments.
The most effective a part of incremental supply is that you may make a change and observe its influence earlier than making the subsequent change. If one thing doesn’t work such as you anticipated, then it’s simple to unwind it and go in a distinct route. In our case, the blueprint that we specified by 2013 ended up trying nothing like what EBS seems like immediately, but it surely gave us a route to begin transferring towards. For instance, again then we by no means would have imagined that Amazon would in the future construct its personal SSDs, with a know-how stack that may very well be tailor-made particularly to the wants of EBS.
All the time query your assumptions!
Difficult our assumptions led to enhancements in each single a part of the stack.
We began with software program virtualization. Till late 2017 all EC2 cases ran on the Xen hypervisor. With units in Xen, there’s a ring queue setup that permits visitor cases, or domains, to share data with a privileged driver area (dom0) for the needs of IO and different emulated units. The EBS shopper ran in dom0 as a kernel block gadget. If we comply with an IO request from the occasion, simply to get off of the EC2 host there are lots of queues: the occasion block gadget queue, the Xen ring, the dom0 kernel block gadget queue, and the EBS shopper community queue. In most methods, efficiency points are compounding, and it’s useful to concentrate on parts in isolation.
One of many first issues that we did was to put in writing a number of “loopback” units in order that we may isolate every queue to gauge the influence of the Xen ring, the dom0 block gadget stack, and the community. We had been virtually instantly stunned that with virtually no latency within the dom0 gadget driver, when a number of cases tried to drive IO, they might work together with one another sufficient that the goodput of all the system would decelerate. We had discovered one other noisy neighbor! Embarrassingly, we had launched EC2 with the Xen defaults for the variety of block gadget queues and queue entries, which had been set a few years prior primarily based on the restricted storage {hardware} that was out there to the Cambridge lab constructing Xen. This was very surprising, particularly once we realized that it restricted us to solely 64 IO excellent requests for a complete host, not per gadget—definitely not sufficient for our most demanding workloads.
We mounted the principle points with software program virtualization, however even that wasn’t sufficient. In 2013, we had been properly into the event of our first Nitro offload card devoted to networking. With this primary card, we moved the processing of VPC, our software program outlined community, from the Xen dom0 kernel, right into a devoted {hardware} pipeline. By isolating the packet processing knowledge airplane from the hypervisor, we now not wanted to steal CPU cycles from buyer cases to drive community site visitors. As an alternative, we leveraged Xen’s capability to move a digital PCI gadget on to the occasion.
This was a unbelievable win for latency and effectivity, so we determined to do the identical factor for EBS storage. By transferring extra processing to {hardware}, we eliminated a number of working system queues within the hypervisor, even when we weren’t able to move the gadget on to the occasion simply but. Even with out passthrough, by offloading extra of the interrupt pushed work, the hypervisor spent much less time servicing the requests—the {hardware} itself had devoted interrupt processing features. This second Nitro card additionally had {hardware} functionality to deal with EBS encrypted volumes with no influence to EBS quantity efficiency. Leveraging our {hardware} for encryption additionally meant that the encryption key materials is saved separate from the hypervisor, which additional protects buyer knowledge.
Transferring EBS to Nitro was an enormous win, but it surely virtually instantly shifted the overhead to the community itself. Right here the issue appeared easy on the floor. We simply wanted to tune our wire protocol with the newest and best knowledge middle TCP tuning parameters, whereas selecting the most effective congestion management algorithm. There have been just a few shifts that had been working towards us: AWS was experimenting with completely different knowledge middle cabling topology, and our AZs, as soon as a single knowledge middle, had been rising past these boundaries. Our tuning can be helpful, as within the instance above, the place including a small quantity of random latency to requests to storage servers counter-intuitively diminished the common latency and the outliers because of the smoothing impact it has on the community. These adjustments had been in the end brief lived as we repeatedly elevated the efficiency and scale of our system, and we needed to frequently measure and monitor to ensure we didn’t regress.
Realizing that we would wish one thing higher than TCP, in 2014 we began laying the inspiration for Scalable Dependable Datagram (SRD) with “A Cloud-Optimized Transport Protocol for Elastic and Scalable HPC”. Early on we set just a few necessities, together with a protocol that might enhance our capability to recuperate and route round failures, and we wished one thing that may very well be simply offloaded into {hardware}. As we had been investigating, we made two key observations: 1/ we didn’t have to design for the final web, however we may focus particularly on our knowledge middle community designs, and a couple of/ in storage, the execution of IO requests which might be in flight may very well be reordered. We didn’t have to pay the penalty of TCP’s strict in-order supply ensures, however may as a substitute ship completely different requests down completely different community paths, and execute them upon arrival. Any boundaries may very well be dealt with on the shopper earlier than they had been despatched on the community. What we ended up with is a protocol that’s helpful not only for storage, however for networking, too. When utilized in Elastic Community Adapter (ENA) Specific, SRD improves the efficiency of your TCP stacks in your visitor. SRD can drive the community at larger utilization by making the most of a number of community paths and decreasing the overflow and queues within the intermediate community units.
Efficiency enhancements are by no means a few single focus. It’s a self-discipline of repeatedly difficult your assumptions, measuring and understanding, and shifting focus to probably the most significant alternatives.
Constraints breed innovation
We weren’t glad that solely a comparatively small variety of volumes and prospects had higher efficiency. We wished to deliver the advantages of SSDs to everybody. That is an space the place scale makes issues troublesome. We had a big fleet of hundreds of storage servers working tens of millions of non-provisioned IOPS buyer volumes. A few of those self same volumes nonetheless exist immediately. It could be an costly proposition to throw away all of that {hardware} and exchange it.
There was empty area within the chassis, however the one location that didn’t trigger disruption within the cooling airflow was between the motherboard and the followers. The good factor about SSDs is that they’re sometimes small and light-weight, however we couldn’t have them flopping round free within the chassis. After some trial and error—and assist from our materials scientists—we discovered warmth resistant, industrial energy hook and loop fastening tape, which additionally allow us to service these SSDs for the remaining lifetime of the servers.
Armed with this data, and quite a lot of human effort, over the course of some months in 2013, EBS was in a position to put a single SSD into each a kind of hundreds of servers. We made a small change to our software program that staged new writes onto that SSD, permitting us to return completion again to your utility, after which flushed the writes to the slower exhausting disk asynchronously. And we did this with no disruption to prospects—we had been changing a propeller plane to a jet whereas it was in flight. The factor that made this attainable is that we designed our system from the beginning with non-disruptive upkeep occasions in thoughts. We may retarget EBS volumes to new storage servers, and replace software program or rebuild the empty servers as wanted.
This capability emigrate buyer volumes to new storage servers has turn out to be useful a number of instances all through EBS’s historical past as we’ve recognized new, extra environment friendly knowledge constructions for our on-disk format, or introduced in new {hardware} to interchange the outdated {hardware}. There are volumes nonetheless energetic from the primary few months of EBS’s launch in 2008. These volumes have seemingly been on lots of of various servers and a number of generations of {hardware} as we’ve up to date and rebuilt our fleet, all with out impacting the workloads on these volumes.
Reflecting on scaling efficiency
There’s another journey over this time that I’d wish to share, and that’s a private one. Most of my profession previous to Amazon had been in both early startup or equally small firm cultures. I had constructed managed providers, and even distributed methods out of necessity, however I had by no means labored on something near the size of EBS, even the EBS of 2011, each in know-how and group dimension. I used to be used to fixing issues on my own, or perhaps with one or two different equally motivated engineers.
I actually get pleasure from going tremendous deep into issues and attacking them till they’re full, however there was a pivotal second when a colleague that I trusted identified that I used to be changing into a efficiency bottleneck for our group. As an engineer who had grown to be an knowledgeable within the system, but additionally who cared actually, actually deeply about all elements of EBS, I discovered myself on each escalation and in addition desirous to evaluate each commit and each proposed design change. If we had been going to achieve success, then I needed to discover ways to scale myself–I wasn’t going to unravel this with simply possession and bias for motion.
This led to much more experimentation, however not within the code. I knew I used to be working with different good of us, however I additionally wanted to take a step again and take into consideration learn how to make them efficient. One among my favourite instruments to come back out of this was peer debugging. I keep in mind a session with a handful of engineers in one in every of our lounge rooms, with code and some terminals projected on a wall. One of many engineers exclaimed, “Uhhhh, there’s no means that’s proper!” and we had discovered one thing that had been nagging us for some time. We had missed the place and the way we had been locking updates to vital knowledge constructions. Our design didn’t normally trigger points, however sometimes we’d see gradual responses to requests, and fixing this eliminated one supply of jitter. We don’t at all times use this method, however the neat factor is that we’re in a position to mix our shared methods data when issues get actually difficult.
By means of all of this, I spotted that empowering folks, giving them the power to soundly experiment, can usually result in outcomes which might be even higher than what was anticipated. I’ve spent a big portion of my profession since then specializing in methods to take away roadblocks, however depart the guardrails in place, pushing engineers out of their consolation zone. There’s a little bit of psychology to engineering management that I hadn’t appreciated. I by no means anticipated that one of the rewarding elements of my profession can be encouraging and nurturing others, watching them personal and clear up issues, and most significantly celebrating the wins with them!
Conclusion
Reflecting again on the place we began, we knew we may do higher, however we weren’t positive how significantly better. We selected to method the issue, not as a giant monolithic change, however as a sequence of incremental enhancements over time. This allowed us to ship buyer worth sooner, and course right as we realized extra about altering buyer workloads. We’ve improved the form of the EBS latency expertise from one averaging greater than 10 ms per IO operation to constant sub-millisecond IO operations with our highest performing io2 Block Specific volumes. We achieved all this with out taking the service offline to ship a brand new structure.
We all know we’re not carried out. Our prospects will at all times need extra, and that problem is what retains us motivated to innovate and iterate.
